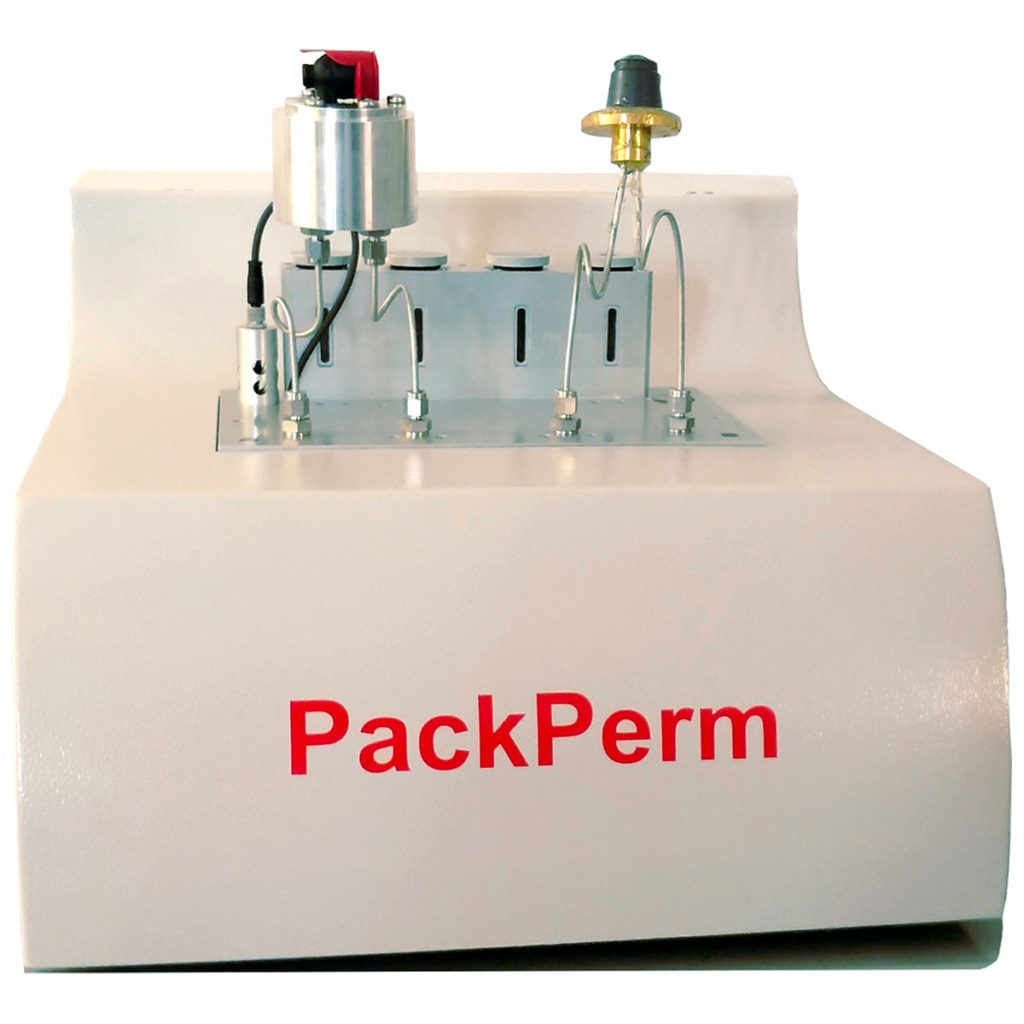

PackPerm




PackPerm



FOR PACKAGES

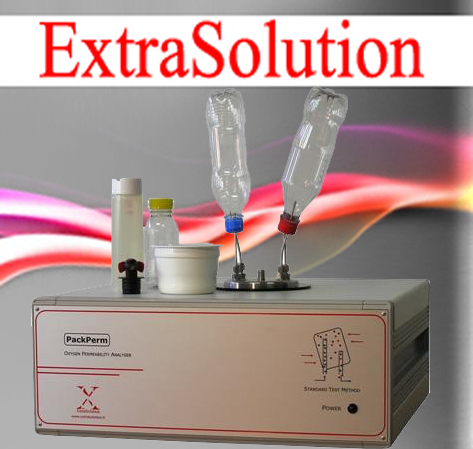

Oxygen permeability tester for flexible packages, stiff containers and PET bottles.


  • PC controlled measurement system with automatic end measurement.
  • System able to carry out measurements at different humidity values inside to the sample.
  • Automatic adjustment of the gas carrier flow according to the required sensitivity.
  • Automatic barometric compensation system.
  • Results expressed in standard units: cm3·pkg-1·24h-1·bar-1
  • Simultaneous measurement of two distinct samples
  • Supplied complete with PC (Windows OS) and LCD display
  • PackPerm software included
  • PackPerm software developed on Labview platform® allows you to easily perform oxygen permeability (O2TR) analysis and also to calibrate the instrument through a simple step-by-step procedure.

O2TR measured in accordance with ASTM F1307 and DIN 53380-3 standards.
Both standards require that the sample to be measured be sealed using epoxy resin.

NORME: PackPerm complies with the norms DIN 53380-3 and ASTM F1307 for OTR measurements through packages.


Test Range O20.0001-5 cm3·pkg-1·24h-1·bar-1
Test Sample SizePackages, boxes, PET bottles, corks, …
Number of simultaneous sample2
Test temperature rangeRoom temperature monitored by software
Relative humidity (Oside)Room RH Monitored by software
Relative humidity (Nside)0, 30-90%
Carrier flow (N2)12-36 ml/min automatically controlled
Carrier gasN2 5.0 + 1% H2 mix
N2 Pressure2.0 bar
Gas connections1 x Standard Ham-Let 1/8″
SoftwareLabView based with USB interface
PC with preinstalled softwareWindowsTM OS and LCD monitor
Power supply100-220 AC, 50-60 Hz (400 W max)
Apparatus size (cm)41W / 61 D / 31 H (computer not included)
